Precision Sizing Protocol: How to Measure Window and Door Screens

Practical Principles of Accurate Screen Sizing

How to Approach Screen Measuring and Sizing Guidelines

To maintain strict factual accuracy, measurement instructions across this guide are distinguished into five specific tiers of authority:

• Manufacturer Specifications: Published measuring workflows, track-to-track addition rules, and roller adjustment instructions documented by specific screen fabricators and hardware suppliers, including Metro Screenworks and C.R. Laurence.Manufacturer Specification
• Common Trade Practices: Widely documented field techniques used across screen and window replacement, such as measuring to the nearest 1/16 inch.Common Trade Practice
• Variable by Window System: Channel deductions, hardware placement, and frame clearances that legitimately depend on the original window manufacturer's track depth, sill profile, or extrusion die.Variable by System / Environment
• Geometric Principles: Standard mathematical methods, such as diagonal corner-to-corner measurement, used to verify rectangular squareness.Geometric Principle
• Commercial Availability: Catalog evidence that a frame profile, hardware type, or component exists commercially, without implying it fits every opening.Commercial Availability

Because screen frame channels provide relatively shallow seating pockets, small dimensional errors can affect fit, causing a screen to bind during installation or seat loosely in the receiving track.

1. Use a Rigid Measuring Tool: Flexible measuring tapes can stretch or bend, leading to inconsistent readings. Use a rigid steel tape measure or caliper capable of reliably reading fractional increments.Common Trade Practice
2. Measure Dimensions to the Nearest 1/16 Inch: Manufacturer field guides such as Metro Screenworks direct measuring all replacement screen dimensions to the nearest 1/16 inch rather than rounding to the nearest half-inch or full inch.Common Trade Practice
3. Check Frame Profile Depth: Commercially available replacement profiles commonly measure nominal 5/16 inch, 3/8 inch, or 7/16 inch deep. Exact compatibility still depends on the receiving channel and frame system.Commercial Availability
4. Take Multi-Point Measurements to Check for Bowing: A recommended field verification technique is to check width across the top, center, and bottom, and height across the left, center, and right. Recording the narrowest consistent dimension helps prevent binding against localized frame distortion; this is field verification guidance, not an industry consensus standard.Variable by System / Environment
5. Identify Hardware Type Before Applying Any Deduction: Sizing deductions and clearances depend on the screen-retention system, channel depth, sill profile, and hardware configuration.Variable by System / Environment

When the existing assembly is being rescreened, document the screen mesh fabric wrapped around the frame because mesh thickness can affect spline fit and installation pressure.

Scenario 1: Measuring an Existing, Undamaged Screen Frame

If the original window screen fits properly and is not bent, twisted, or distorted, measuring its physical frame is the most direct method for ordering a replacement.

• Measure Outside Frame Dimensions: Measure overall width from the outside edge of the left frame rail to the outside edge of the right frame rail. Measure overall height from top edge to bottom edge. Measure the aluminum frame itself, excluding flexible pull tabs or uncompressed wire springs extending past the frame perimeter.Common Trade Practice
• Measure Frame Depth: Measure the outside cross-sectional thickness of the aluminum frame rail. Commercially available replacement profiles commonly measure nominal 5/16 inch, 3/8 inch, or 7/16 inch deep.Commercial Availability
• Document Hardware Placement: Record which rails hold hardware, for example tension springs along the top rail, pull tabs along the bottom rail, or plunger pins through side rails.Variable by System / Environment

Scenario 2: Measuring When the Original Window Screen is Missing

When the original screen is missing, you must measure the window frame's dedicated receiving channels directly.

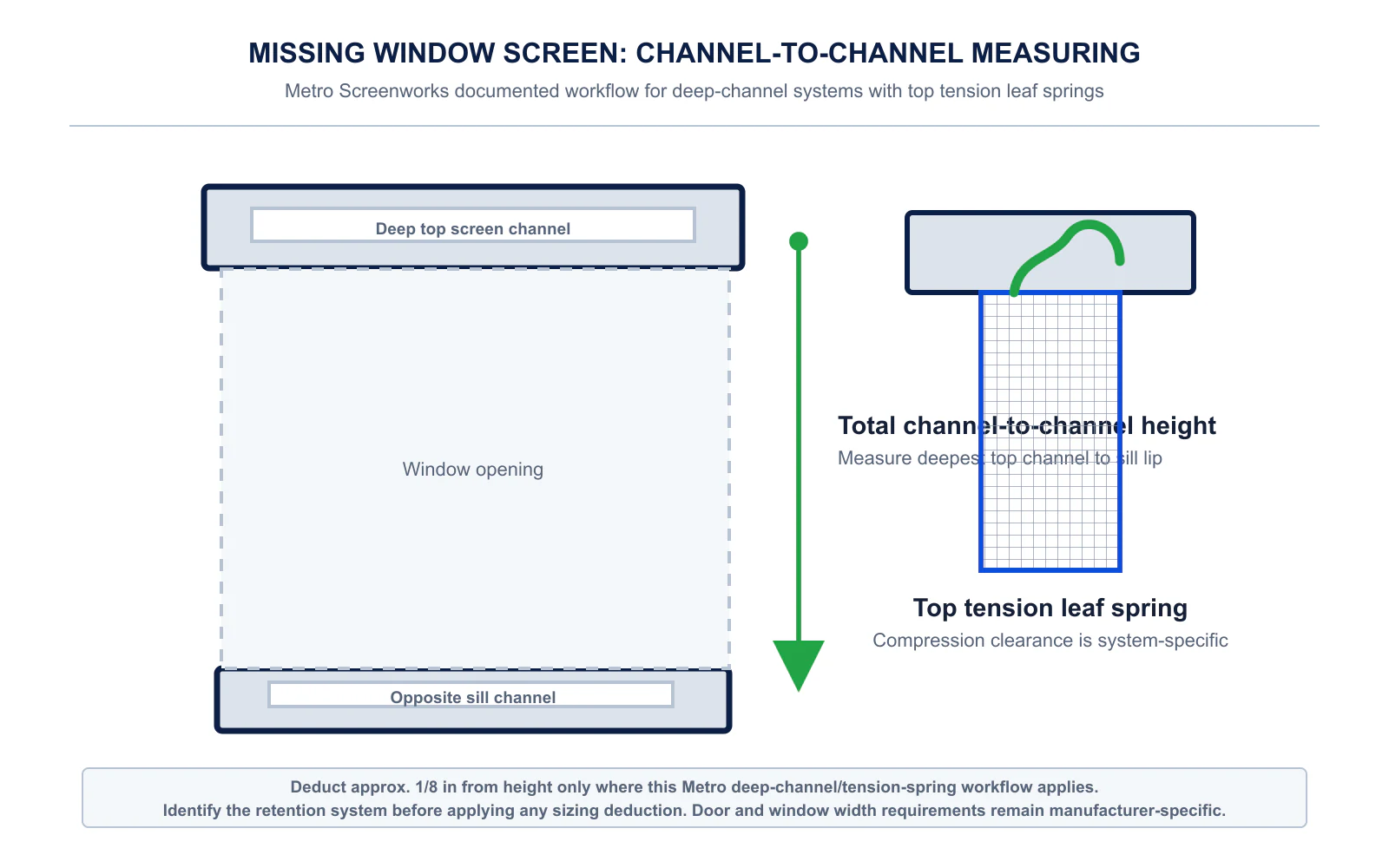

The Channel-to-Channel Measurement Workflow

• Inspect Receiving Channel Geometry First: Examine the window frame perimeter to identify the dedicated screen channel profile, stop depths, and intended retention style. Do not assume every window uses the same hardware arrangement.Variable by System / Environment
• Identify Deep Channel Configurations: In window systems configured with a deeper top channel receiving tension leaf springs, locate the deep track on the top rail or side jamb.Variable by System / Environment
• Measure Total Channel Depth: Where this tension spring configuration applies, Metro Screenworks field guidance says to measure from the inside bottom of the deepest top channel down to the lip of the opposite sill channel.Manufacturer Specification
• Apply Sizing Deduction: Metro Screenworks field guidance documents deducting approximately 1/8 inch from the total channel-to-channel height. This clearance allows the screen to compress the tension springs upward into the deep track, providing clearance for the bottom rail to swing over the sill into the lower channel.Manufacturer Specification
• Measure Width: Measure the clear distance between the left and right receiving channels. Finished width requirements depend on the receiving channel profile, frame style, and specific window manufacturer geometry.Variable by System / Environment

Understanding Retention Hardware & Sizing Deductions

Sizing deductions and clearances depend directly on the mechanical retention hardware used by the specific window system.

Before changing frame dimensions, identify the frame geometry, hardware position, mesh thickness, and spline system. The related guides on box frames vs. lip screen frame profiles and the spline selection guide and spline groove width are useful context when the measurement problem crosses into frame or spline compatibility.

• Tension Leaf Springs: Installed on the top rail or side rail of box frames. Where this hardware configuration is used in deep-channel window systems, published field guidance from Metro Screenworks recommends deducting approximately 1/8 inch from total opening height for spring clearance.Manufacturer Specification
• Spring Plunger Pins: Metal or plastic pins mounted through drilled holes in the screen frame that extend into pre-drilled holes in the window casing. Clearances and pin hole centerlines are determined by the specific window casing geometry and must align with the receiving holes in the window stops.Variable by System / Environment
• Knife Latches, Turn Buttons & Friction Fits: Common on interior casement screens or specialty storm framing. Finished dimensions and hardware locations depend on the manufacturer's stop-to-stop casing dimensions.Variable by System / Environment

Scenario 3: Measuring for Sliding Patio Screen Doors

Sliding patio screen doors operate on dedicated track systems with an upper U-channel header and a raised bottom guide rail.

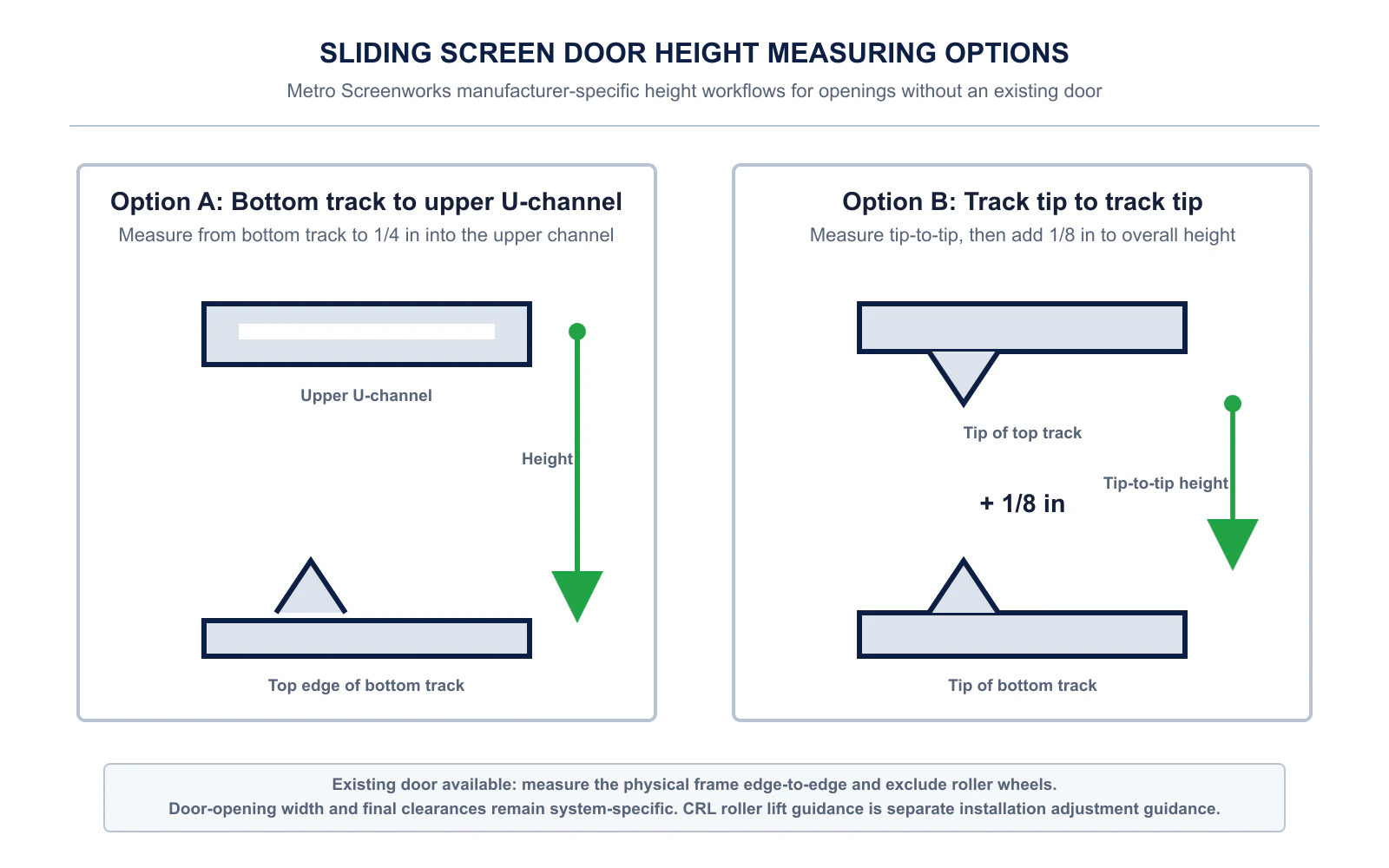

Height Measuring Methods (Metro Screenworks Documented Workflows)

When measuring for a replacement sliding screen door without an existing door, documented manufacturer methods include:

• Option A (Track to U-Channel): Measure from the top edge of the bottom track up 1/4 inch into the upper U-channel.Manufacturer Specification
• Option B (Track to Track): Measure from the tip of the bottom track to the tip of the top track, then add 1/8 inch to the overall measurement.Manufacturer Specification
• If an Existing Door is Available: Measure the overall frame height from top edge to bottom edge, excluding the roller wheels.Manufacturer Specification

Door Width Measurement (System-Specific / Manufacturer Guidance)

When measuring an existing door, measure the overall frame width directly across the rails, excluding rollers. When measuring a door opening without an existing unit, width measurement depends on the patio door system and receiving jamb profile; verify manufacturer ordering instructions for the specific door model.Variable by System / Environment

Roller Adjustment & Leveling (C.R. Laurence Instructions)

Sliding screen doors incorporate adjustable roller assemblies at the bottom corners. Installation instructions from manufacturers such as C.R. Laurence direct installers to turn the roller adjustment screws so the rollers lift the door off the track by approximately 1/8 inch (3 mm), adjusting each corner until the lead stile is parallel with the door jamb for smooth travel.Manufacturer Specification

Scenario 4: Measuring Casement and Awning Interior Screens

Because casement and awning windows crank outward toward the exterior, screens are mounted on the room interior.

• Measure Interior Stops: Measure the clear distance between the interior casing stops, including width and height across the opening.Variable by System / Environment
• Verify Hardware & Operator Clearance: Check that the screen frame profile thickness does not interfere with folding window hand cranks, locking levers, or operator mechanisms.Variable by System / Environment
• Wicket Door Placement: If the window uses a rigid, non-folding crank or push-out operator, document the hand-crank location so a hinged wicket access door can be positioned accurately along the bottom rail.Variable by System / Environment

Field Diagnostics: Verifying Opening Squareness

A screen fabricated to true rectangular dimensions may bind if the receiving window opening is out-of-square.

The Diagonal Verification Check (Geometric Principle)

Measure diagonally from the top-left corner (Corner A) to the bottom-right corner (Corner C), then from the top-right corner (Corner B) to the bottom-left corner (Corner D).Geometric Principle

In geometric principle, a rectangular frame is square when its two diagonal measurements are equal. The closer the two diagonal measurements are to one another, the closer the opening or assembled frame is to true rectangular squareness.Geometric Principle

If diagonal measurements differ noticeably, the window opening has settled or racked. Acceptable dimensional tolerance depends on the specific frame profile, receiving channel depth, and window manufacturer system.Variable by System / Environment

Master Field Measurement Reference Table

The table below compiles documented measuring workflows, hardware configurations, and representative sizing guidelines across window and door types.

Sizing deductions and track addition rules represent published manufacturer instructions from Metro Screenworks and C.R. Laurence. Always inspect existing window frame channels to verify track geometry before ordering custom screens.

Frequently Asked Questions (AEO Direct Answers)

Technical References & Standards Reviewed

The measurement protocols and sizing guidelines in this guide are verified against the following primary manufacturer documentation and technical instructions:

1. Metro ScreenworksWhen Ordering Your Window Screen & How to Measure Window Screens Guidelines
2. Metro ScreenworksMeasure For A Screen Door Field Guide & Instructions
3. C.R. Laurence Co., Inc. (CRL)CRL RIO KDDLX Series Sliding Screen Door Kit Installation Instructions
4. C.R. Laurence Co., Inc. (CRL)Window Screen Frames, Hardware, and Rollers Technical Catalog
